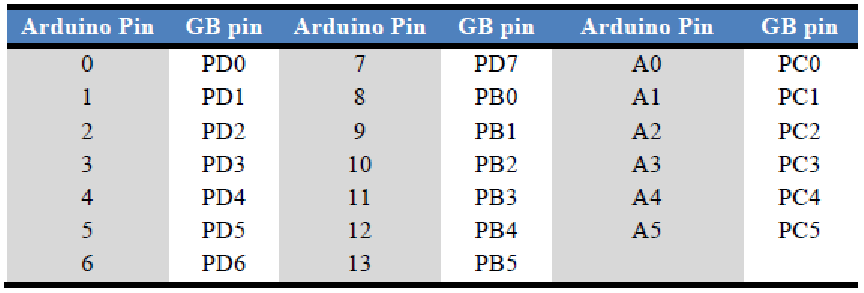

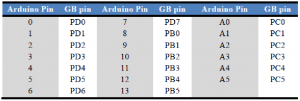

| Arduino | Gertboard | Function |
|---|---|---|
| A0 | PC0 | Analog |
| A1 | PC1 | Analog |
| A2 | PC2 | Analog |
| A3 | PC3 | Analog |
| A4 | PC4 | Analog |
| A5 | PC5 | Analog |
| 0 | PD0 | RxD |
| 1 | PD1 | TxD |
| 2 | PD2 | |
| 3 | PD3 | PWM |
| 4 | PD4 | |
| 5 | PD5 | PWM |
| 6 | PD6 | PWM |
| 7 | PD7 | |
| 8 | PB0 | |
| 9 | PB1 | PWM |
| 10 | PB2 | PWM |
| 11 | PB3 | PWM |
| 12 | PB4 | |
| 13 | PB5 | LED |
